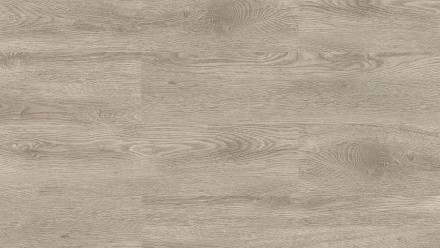

Choose your new rigid click vinyl from the planeo home collection with trendy colours, from rich, warm brown to the popular cool grey tones. Our collection is characterised by the innovative drop-down click connection. The unique joint significantly speeds up the installation process and allows for a variety of installation patterns.
planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.
| item no. | ASP-12003 |
|---|---|
| Manufacturer | planeo |
| Collection | AT HOME |
| Length in mm | 1220 |
| Width in mm | 180 |
| Thickness in mm | 4.5 |
| Wear layer | 0,30 mm |
| Wear class | 32 Commercial (moderate) |
| Joint | Micro bevel |
| suitable for | Bath, Kitchen, Bedroom & living room, Hallway & Corridor |
| installation pattern | Plank pattern (1-plank) |
| Installation type | click |
| Look | Wood effect |
| Sorting (grain) | calm/elegant |
| Underfloor heating | suitable |
| Special features | Integrated impact sound, Suitable for humid rooms, Waterproof |
| EAN | 4062212194652 |
| Piece per package | 12 |
| Structure | Rigid SPC |
| Click system | Droplock 100 |
| Slip resistance | DS |
| Shipping group | M |
| Click variant | DropDown |
| Colour | grey |
| Range of application | Residential, Commercial |
| Style | Modern |
| Weight | 19,40 kg/Packing |
| Package Content | 2.64 m² |
|
Show all data ▼
|
|
| Downloads |
We will help you with your questions!
A specialist adviser will be happy
to advise you personally.
Variant: DIY-Instruction
button
Check the subfloor. Any unevenness exceeding 3mm should be sanded down or filled with a floor levelling compound. Then clean the surface to be laid with a hoover.
CAUTION: Never install vinyl over a soft subfloor such as carpet, cork or any type of foam underlay.
button
The vinyl planks should be stored horizontally in the room where it is to be installed for at least 48 hours before the installation in the packages. This will allow the material to acclimatise to the room temperature and not "work" so hard after installation.
button
Before laying the floor, it is imperative to follow the official laying instructions, which are included in every package, otherwise any claim to warranty and guarantee will be void!
Before laying out the floor, check the wall you are starting on and make sure it is at right angles to the opposite wall. If the impact sound insulation is not already integrated, we now recommend spreading out the insulation.
button
Tips on the drop-down click system: In order to achieve the most uniform appearance of the floor, it is advisable to install panels from different packages mixed together. You should start laying in one corner (left) and starting from the wall. Lay the first plank with the tongue side facing the wall. Then snap the second plank into the first from the top on the face side. In the second row, place the plank at an angle to the long side of the row already laid and fold it down. With the help of a rubber mallet, you can lock the face of the following planks by gently hitting them. To cut a plank, now take measurements and mark the plank. Then take an angle and tear and break the plank with a multi-purpose knife/cutter.
button
The last plank of a row should be the same length as the first plank. Place the spacers against walls, door frames, fixed wall cabinets, kitchen units etc. so that you have an expansion gap of approx. 5-10mm for underfloor movement or expansion of the product. To install the last row, it is recommended to use the floor layer's jointing iron from the accessories. When using skirting boards, make sure that the expansion joint is covered by the skirting board. If the floor is sealed, e.g. in the bathroom, the PE round cord is now inserted into the expansion joint and the floor sealed with a silicone joint.
button
Finally, cut off the PU film approx. 2 cm high and attach the skirting boards.
Material:
Tools:
optional:
Working time:
Difficulty level:
*required for floors with HDF core board and cork impact sound insulation
Click vinyl flooring installation guide
