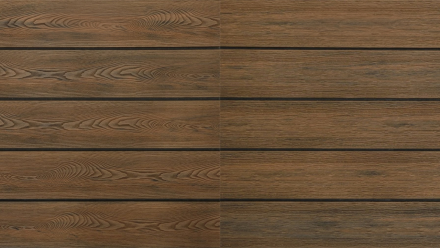

The ultra-modern decking boards are characterised by their ultra-realistic wood look and natural colour gradient. In addition, the annual and cost-intensive re-oiling of the planks is not necessary.
Core material:
Advantages of WPC decking boards:
planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.
| item no. | M-502001_conf |
|---|---|
| Manufacturer | planeo |
| Width in mm | 143 |
| Thickness in mm | 22 |
| Top / bottom | structured/brushed |
| Material | WPC / BPC |
| Special features | Reversible |
| EAN | 4062212043943 |
| Profiles | Solid plank |
| Shipping group | XL |
| Type | Clip system |
| Package Content | 6 rm |
|
Show all data ▼
|
|
| Downloads | |
planeo WPC-Terrassen - Verlegehinweise
|
|
|
planeo WPC Terrasse Massivdiele - Datenblatt
|
|
|
planeo WPC Terrasse Massivdiele - Verlegeanleitung
|
|
We will help you with your questions!
A specialist adviser will be happy
to advise you personally.
Variant: DIY-Instruction
button
First, determine the total construction height of the WPC composite decking boards to be installed. The terrace construction consists of the substructure (chippings, weed fleece, lawn edges) and the terrace construction (terrace pad, substructure, WPC plank). Check whether existing edges of the old terrace can be used for the necessary height. Tighten cords to be able to measure the heights. Also take into account the slope of 2% away from the house.
button
Spread chippings on the compacted gravel roughly with a wheelbarrow and shovel. Level the surface with a spirit level on two long metal rods embedded in the chippings. Check the required construction height and slope with at least two taut strings. Start in one corner and work the entire surface in rows.
button
First roll out a sheet of weed mat starting from the outer edge. Lay the curbs on the weed fleece with a distance of 2 cm to the edge of the patio. Then lay the lawn edges on top. Please note that the distance between the lawn edges should be approx. 30-40 cm.
Tip: A homemade template can serve as a spacer and make it easier to lay the subsequent lawn edges on the fleece.
button
Before laying the substructure, it is imperative to follow the official laying instructions that are included in every package, otherwise any claim under warranty and guarantee will be invalidated!
The WPC substructure requires 2 cm edge distance in all directions. The parallel distances of the substructure should be between 30-40 cm. Mark the exact positions with a chalk line. Lay out the substructure on the composite decking pads and make sure that the substructures are not laid butt to butt, but at least 2 cm apart. All ends in the outdoor area and each end of a substructure should now be doweled. The joints of the substructures are fixed with small section bridges. Reinforce the planned joints of the WPC composite decking boards with additional substructures so that the ends do not hang more than 5 cm freely in the air. Now stick the supplied spacer tape onto each substructure.
button
Mark all the planned lamp positions before you start laying the boards. Unroll the 12V cabling completely along the markings. Leave the cable ends freely accessible and cover unused cable ends with caps. Then install the lamps completely and at the same time as laying the floorboards. To do this, drill the appropriate holes and bring the connectors into contact with the laid-out cable. Finally, clamp the cable to the transformer and position it in the floor tank or near a socket. Use a safebox if the socket is in the ground.
Tip: Check the function of the lamps immediately after the installation.
button
Screw the starting clips onto each substructure with a distance of 2 cm to the wall. Lay the composite decking boards against them and shorten them if necessary. Then position the centre clip, pre-drill and fix the composite decking boards to each substructure with the stainless steel screws provided. Refer to the installation guide for the correct spacing at the head joints. Cut the last row of WPC boards lengthwise with a circular saw. Finally, pre-drill the plank and fix it with a screw.
Material:
optional:
Tools:
optional:
Working time:
Difficulty level:
